How to use a dial caliper

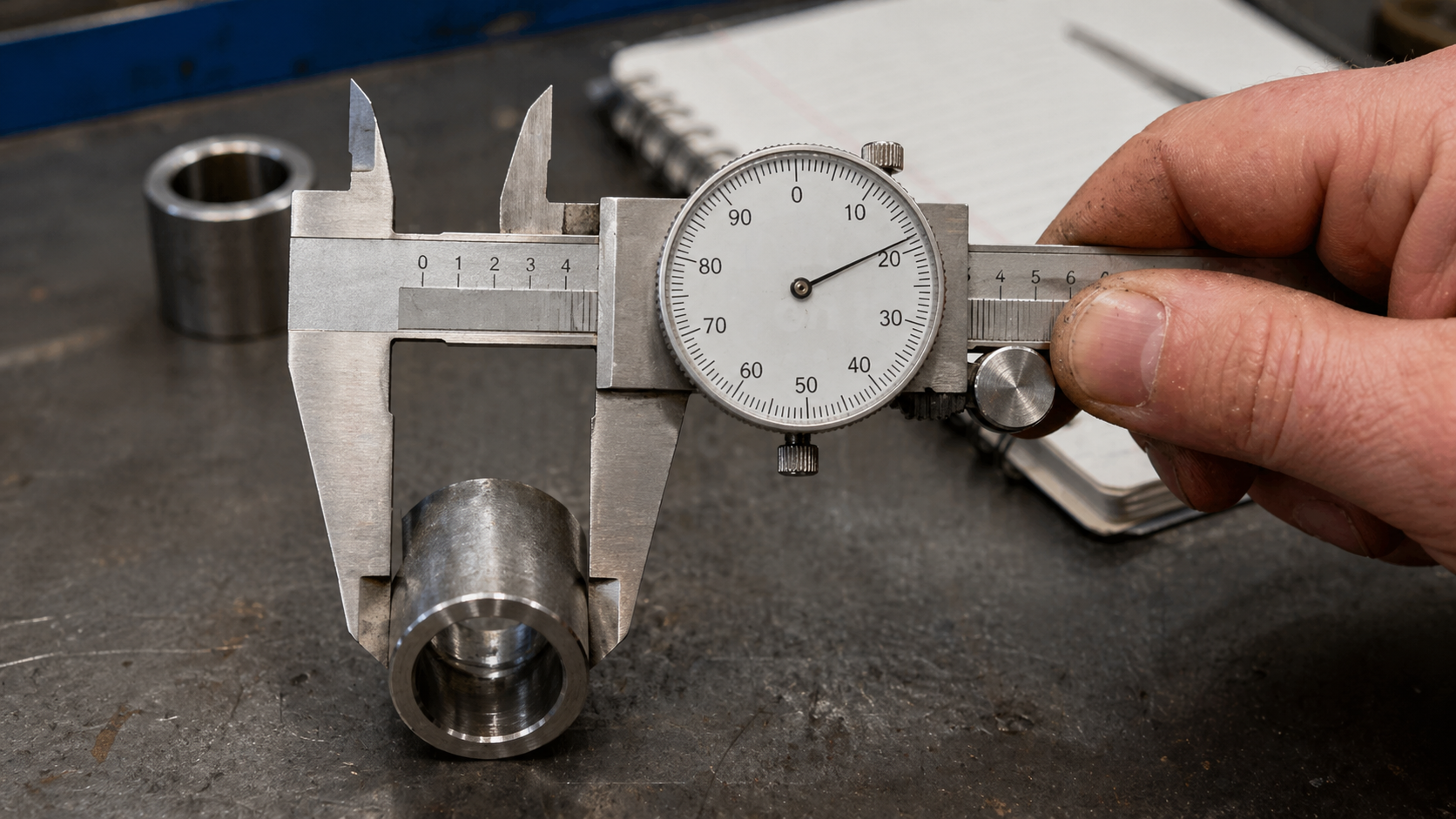

A dial caliper is the bridge between rough tape-measure work and real precision. It reads the beam for big movement and the dial for thousandths, but only if it is clean, zeroed, and held square.
Best For
Small parts, tubing, hardware, material thickness, holes, and quick shop checks.
Core Idea
Read the main scale at the index, read the dial, then add them together.
Before Use
Clean the jaws, close them gently, zero the dial, and check that the slide moves smoothly.
Do Not
Do not force the jaws. Calipers measure; they are not clamps.
Zero first
Close the jaws gently and make sure the needle points to zero. If it does not, rotate the bezel to zero it. Wipe the jaws and part before measuring; a chip, burr, or speck of dust can change the reading.
Use light, repeatable pressure. Squeezing harder does not make the measurement more accurate.
OutsideUse the large jaws for thickness, diameter, and width.
InsideUse the small top jaws for holes and slots.
DepthUse the rod from the end of the beam for hole or step depth.

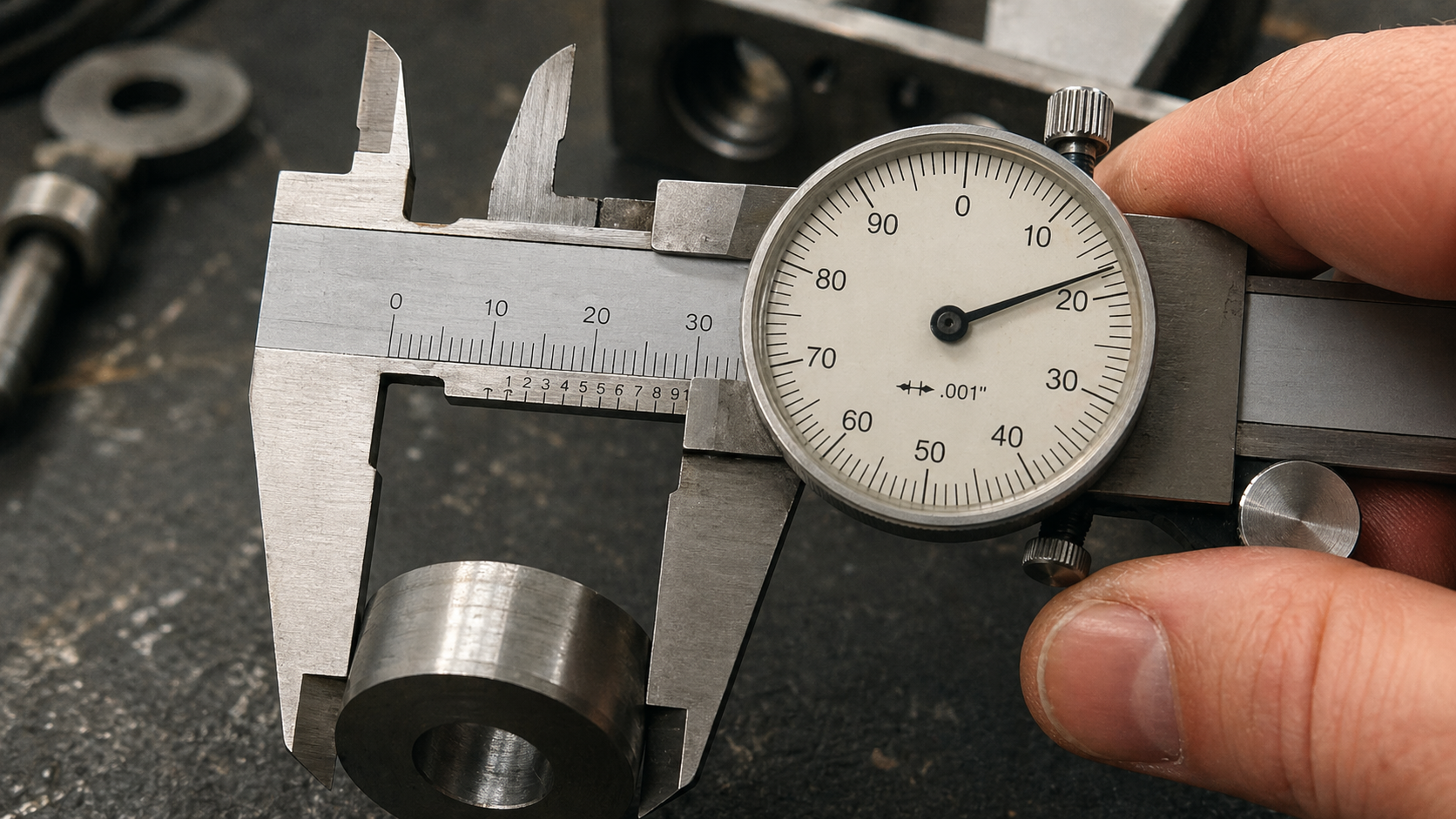

Read the dial caliper
- Read whole inches on the beam. Note the last big number left of the index.
- Read tenths on the beam. Count the 0.100 marks past the inch.
- Read the dial. Most inch dial calipers read 0.001 per small dial mark.
- Add them. Beam plus dial is your final measurement.
- Repeat once. Open, re-seat the jaws, and see if the reading returns.
Better readings
- Keep the jaws square to the part.
- Measure on clean, burr-free surfaces.
- Use a micrometer when thousandths truly matter.
Common mistakes
- Reading the metric scale when you want inches.
- Measuring over paint, weld spatter, or burrs.
- Using the tips of the jaws when the flats fit better.
Where it shines
A caliper is great for checking material thickness, bolt diameter, tube OD, slot width, and whether a part is close enough to keep working. It is a shop truth tool, not a decoration.
