CNC Router Table Build

I designed this machine myself from off-the-shelf parts and a lot of CAD time.

4×4 CNC router table — overall build view

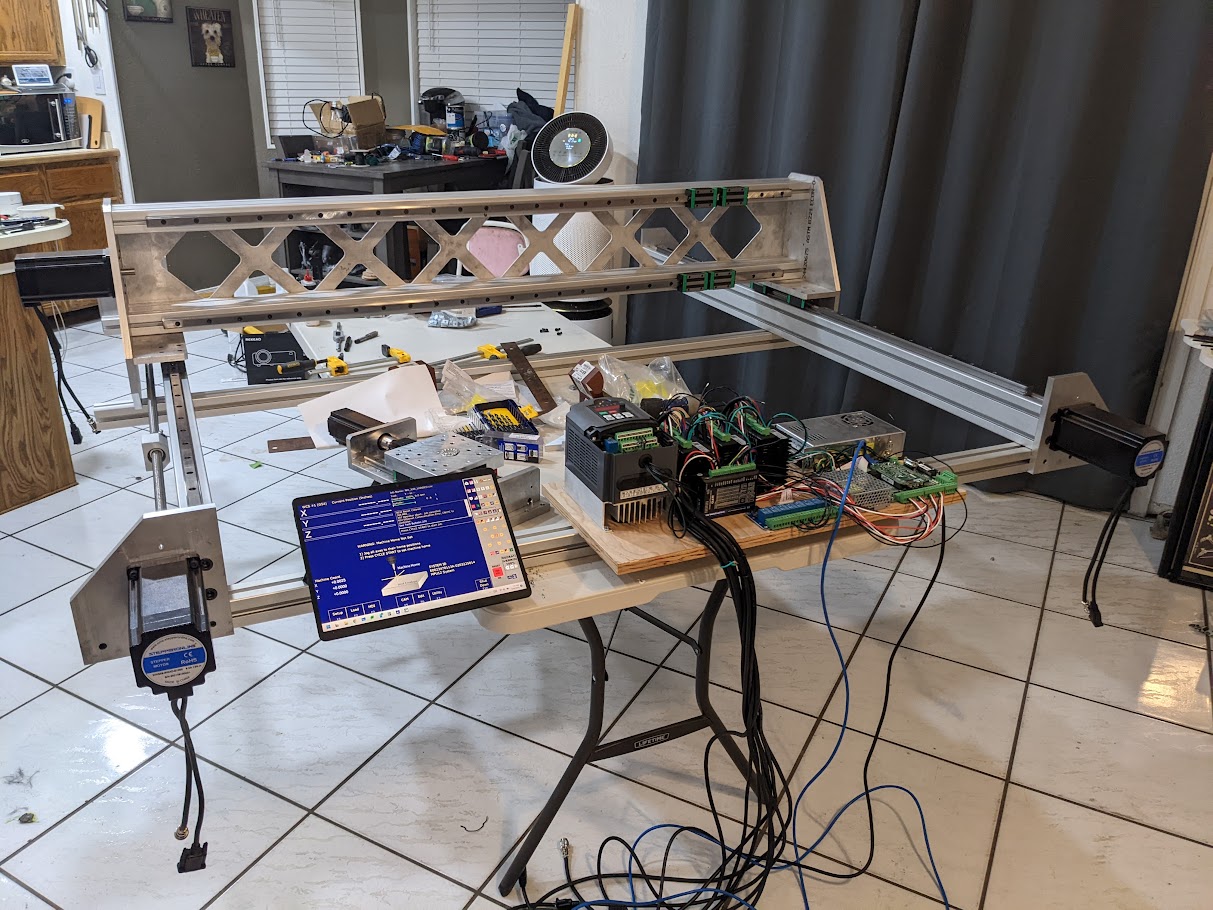

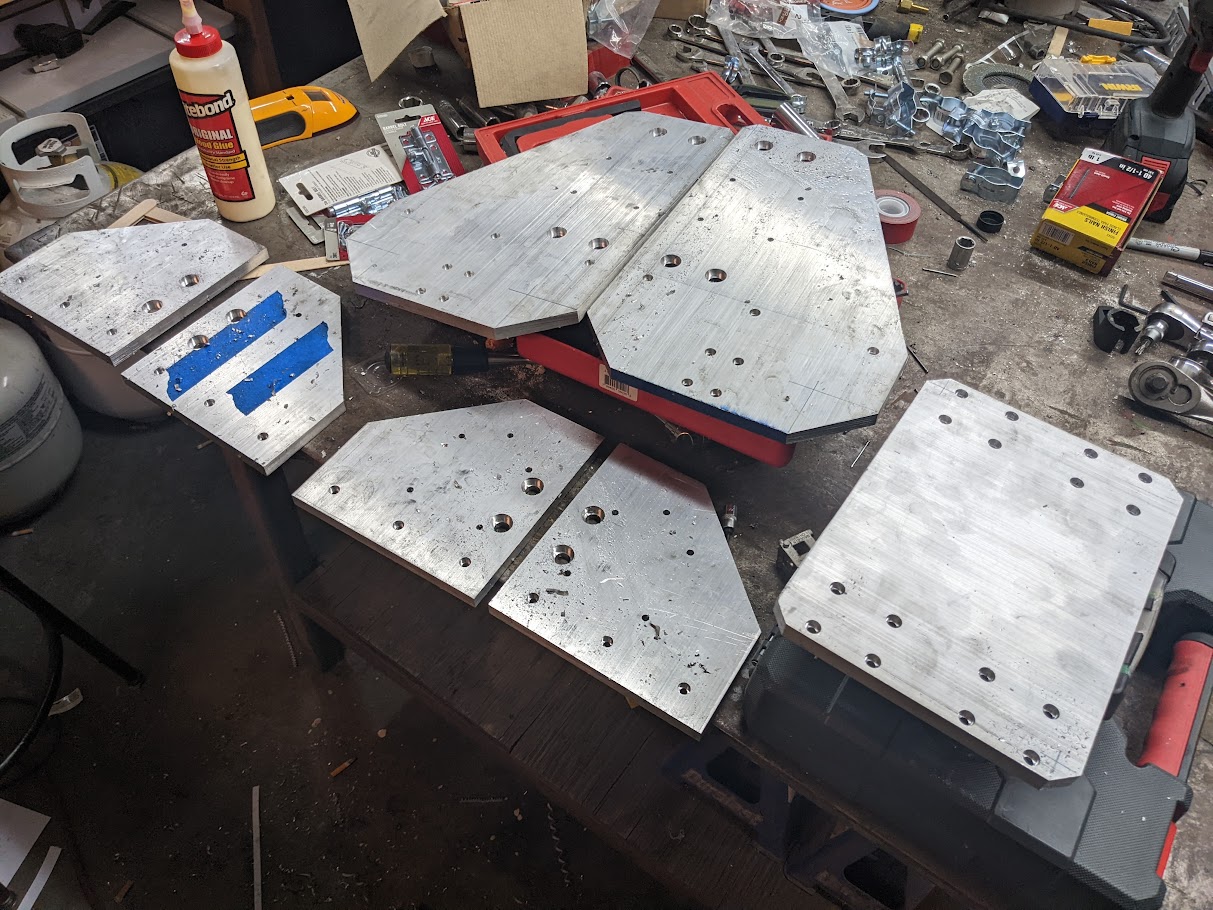

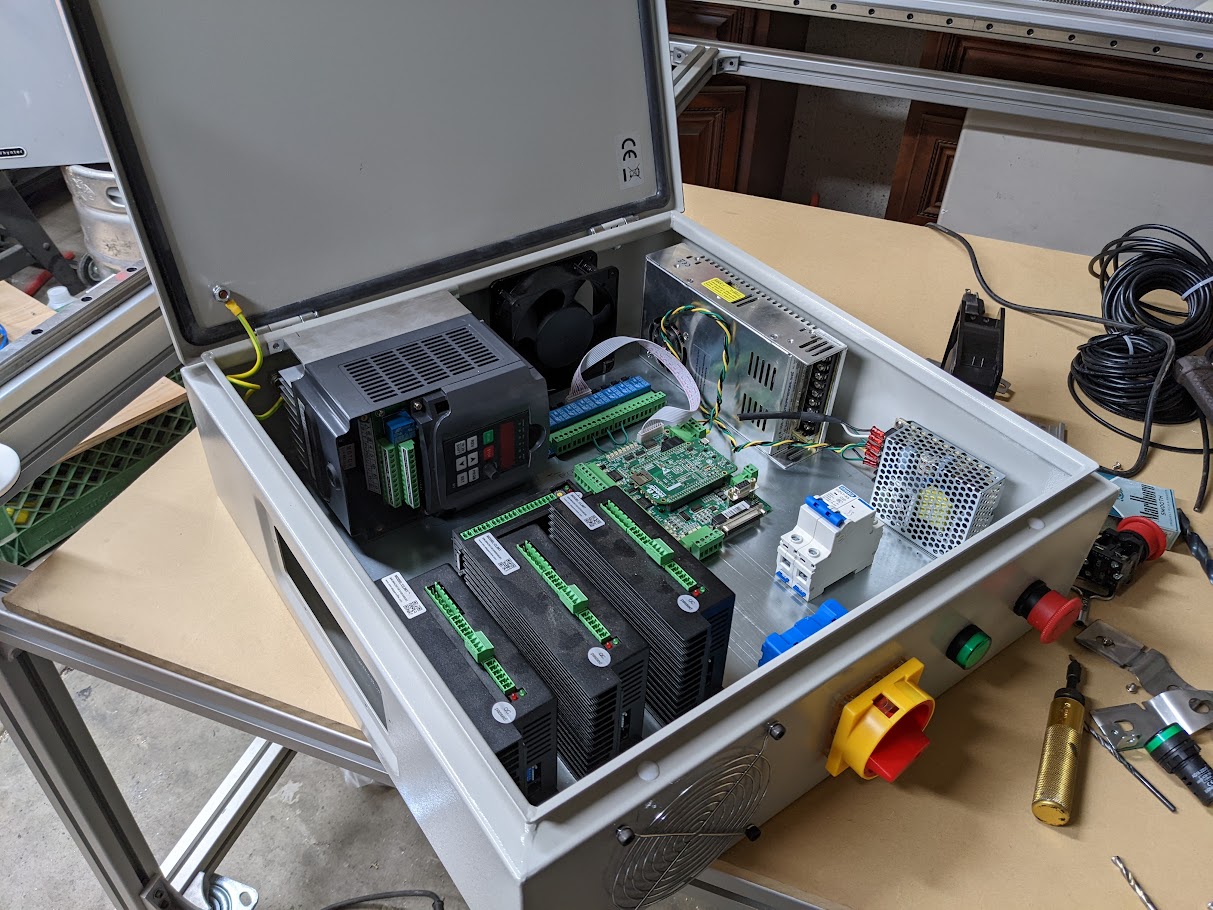

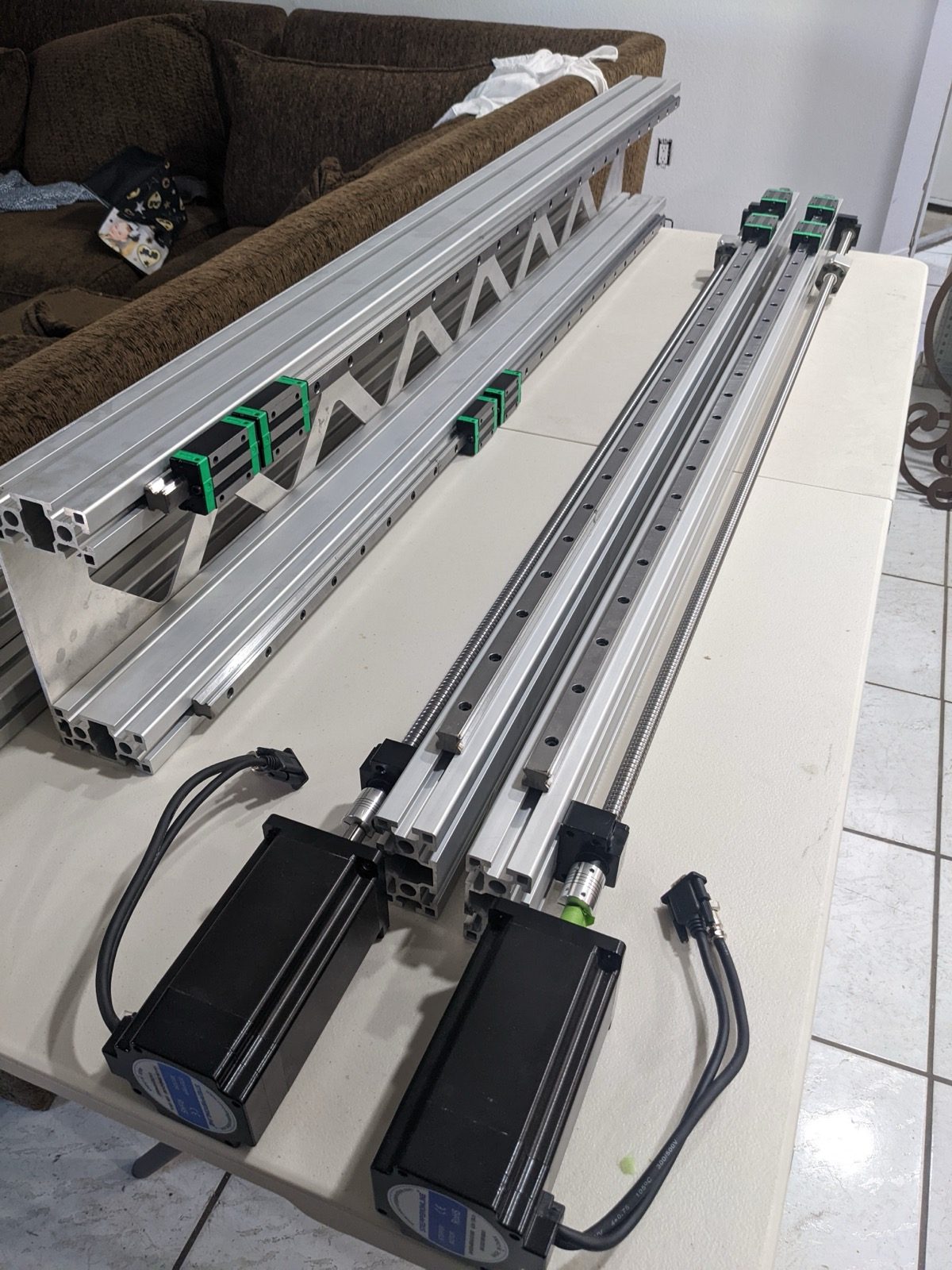

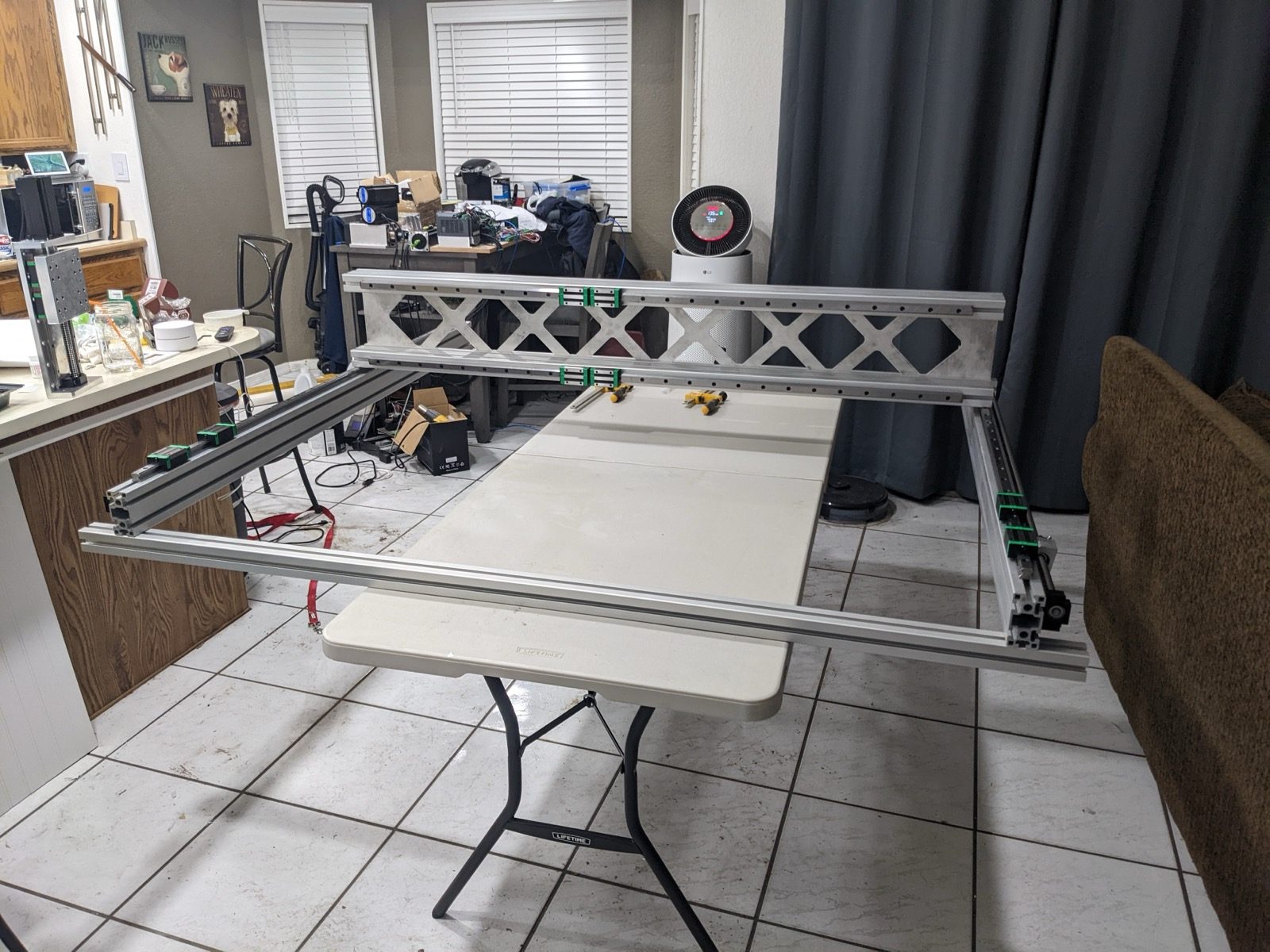

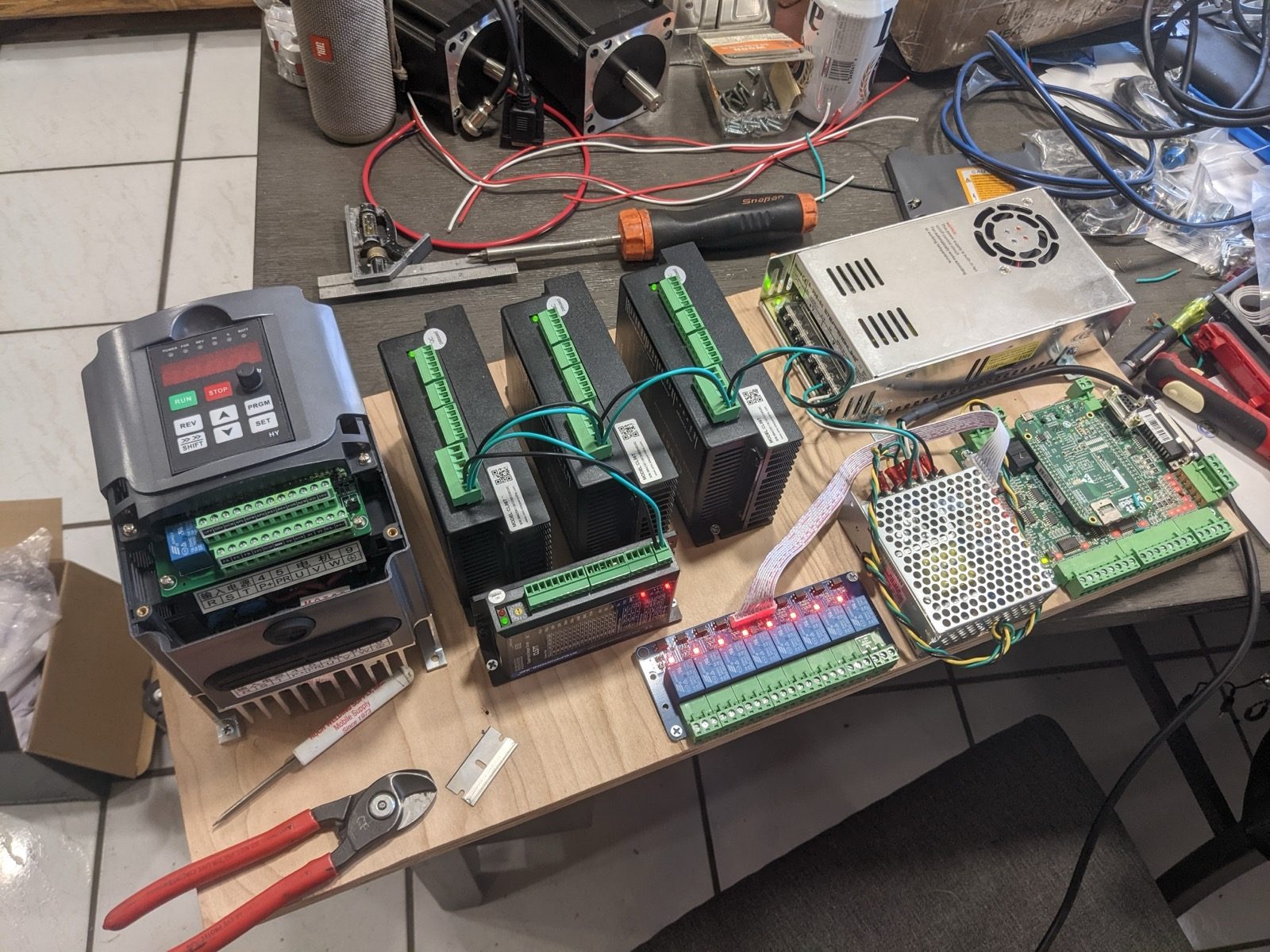

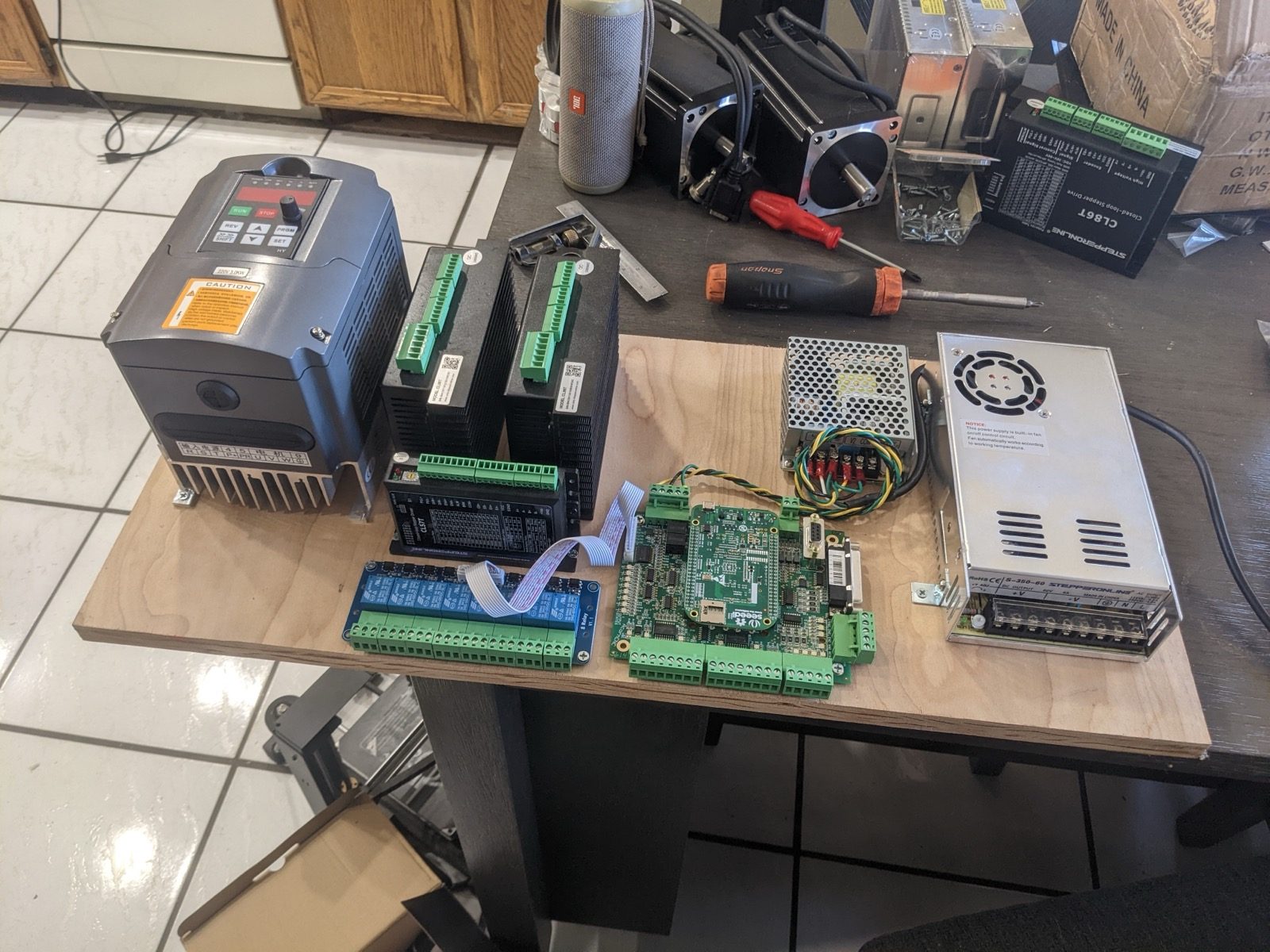

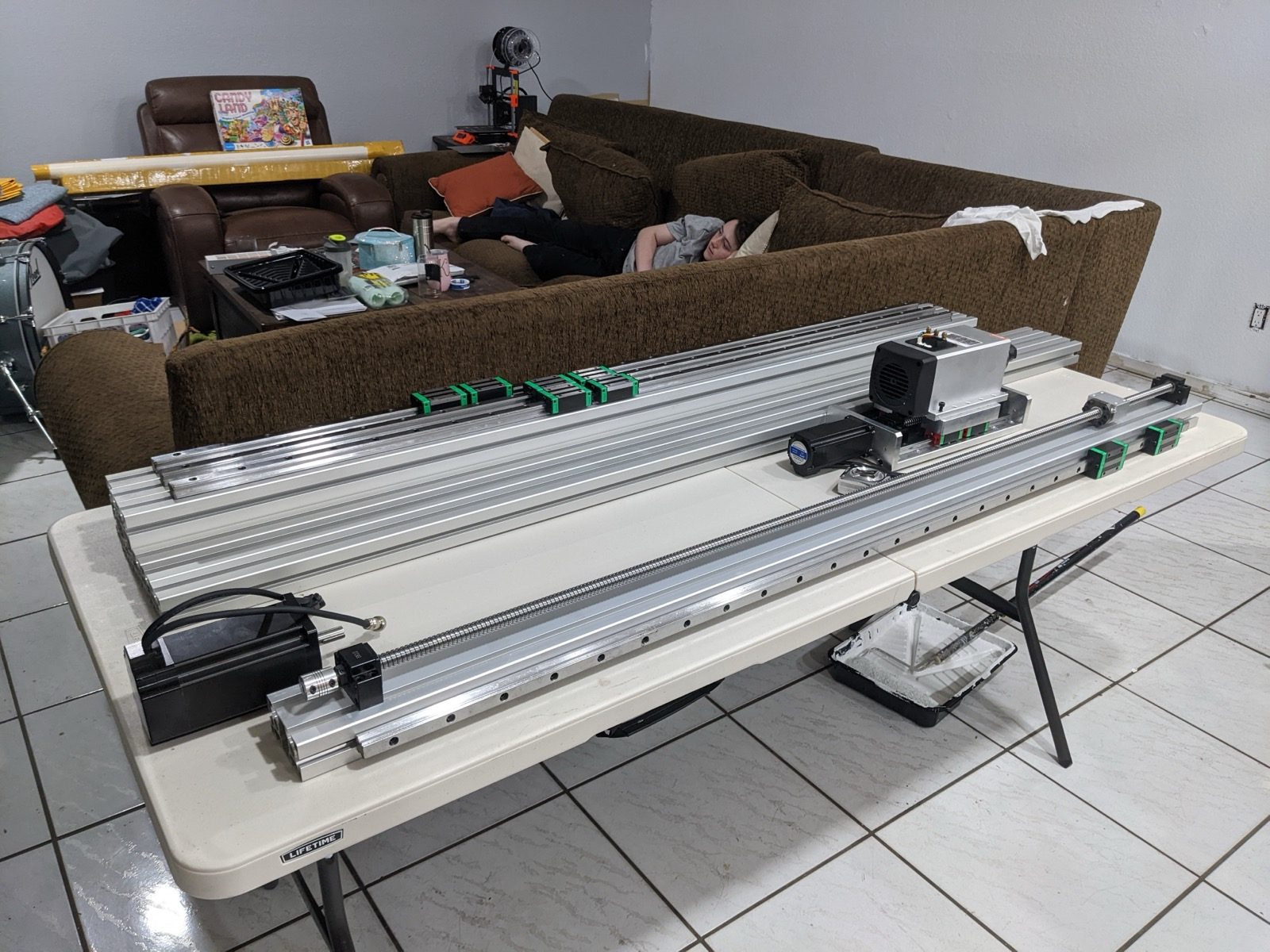

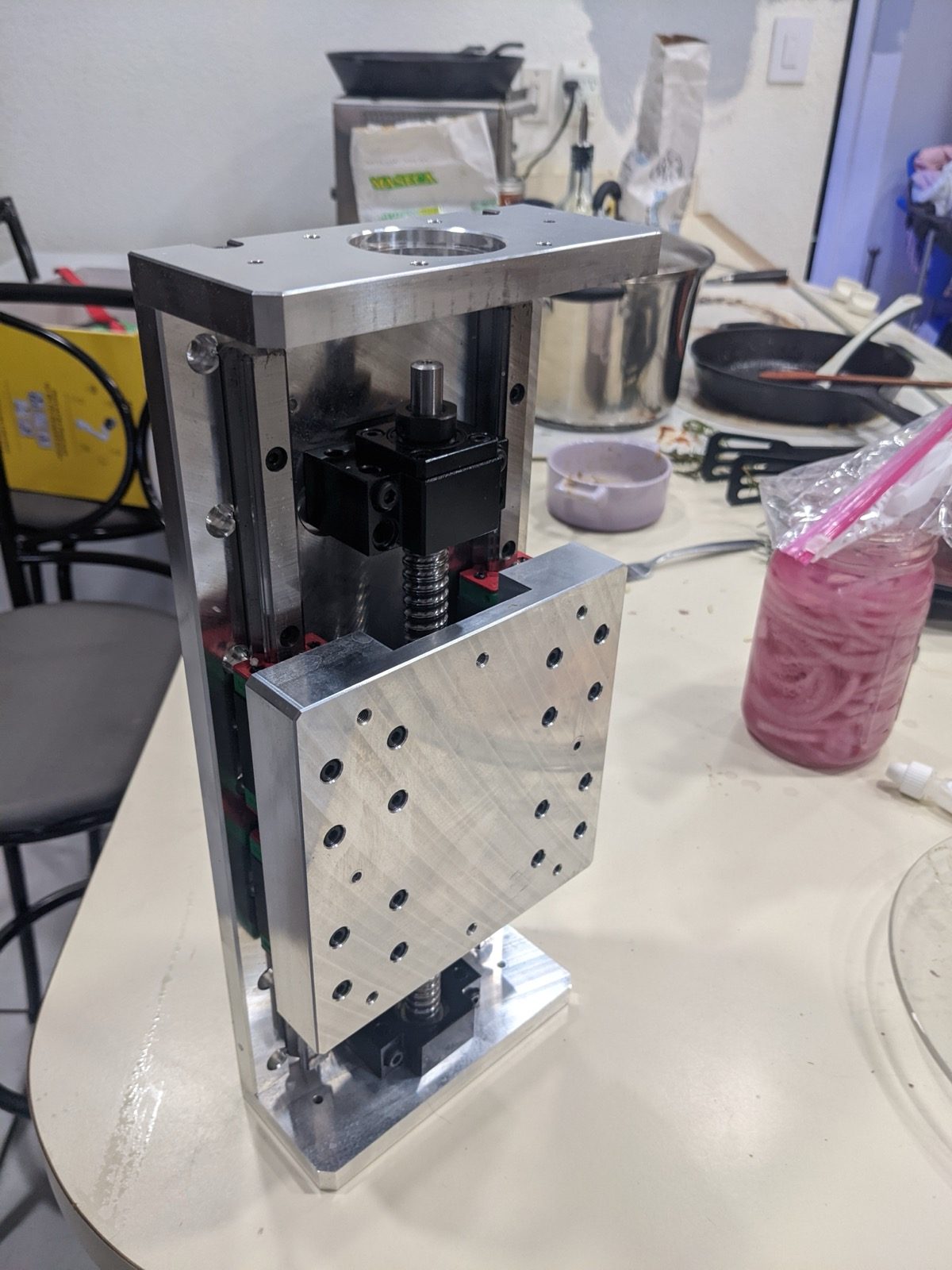

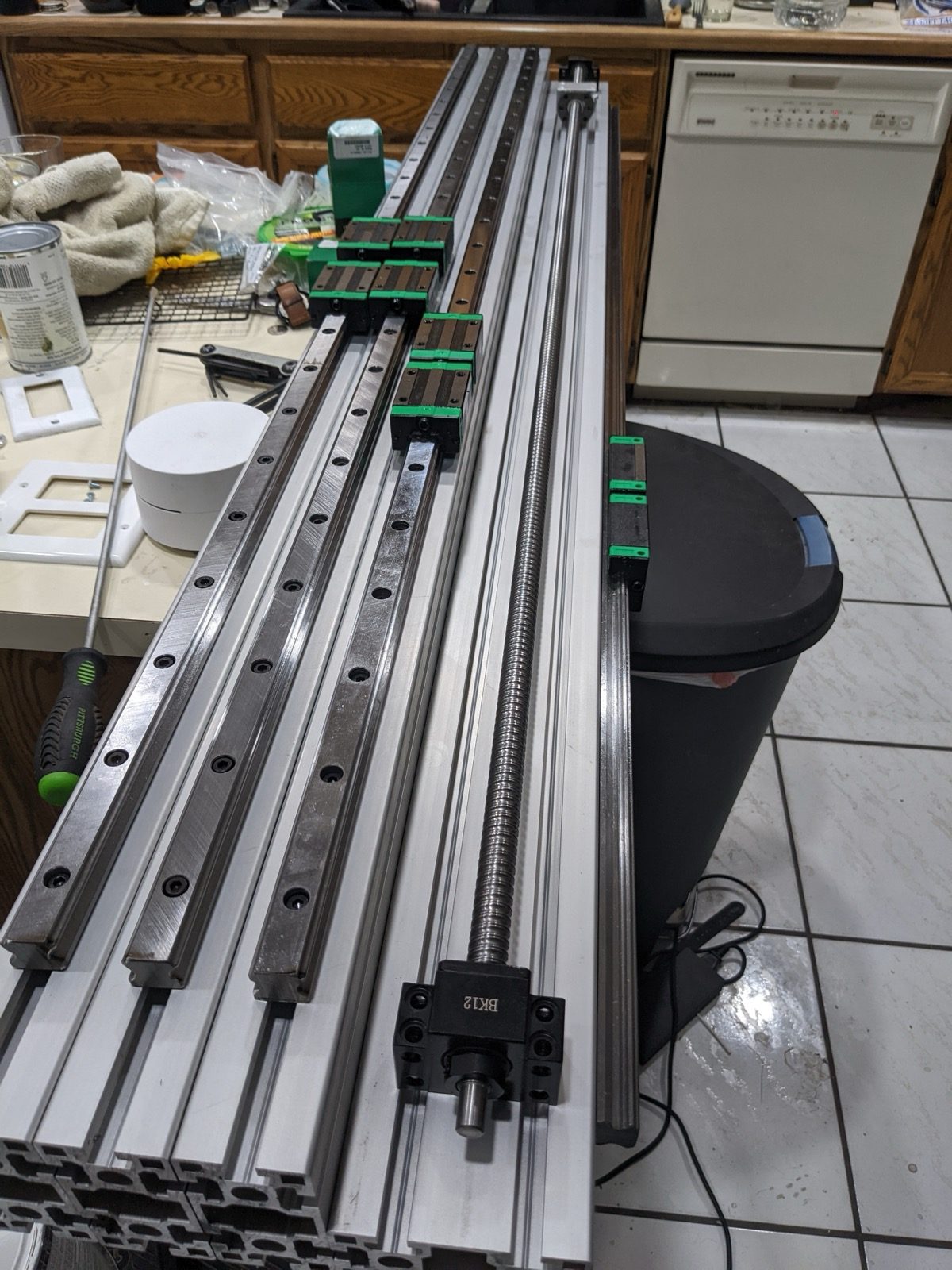

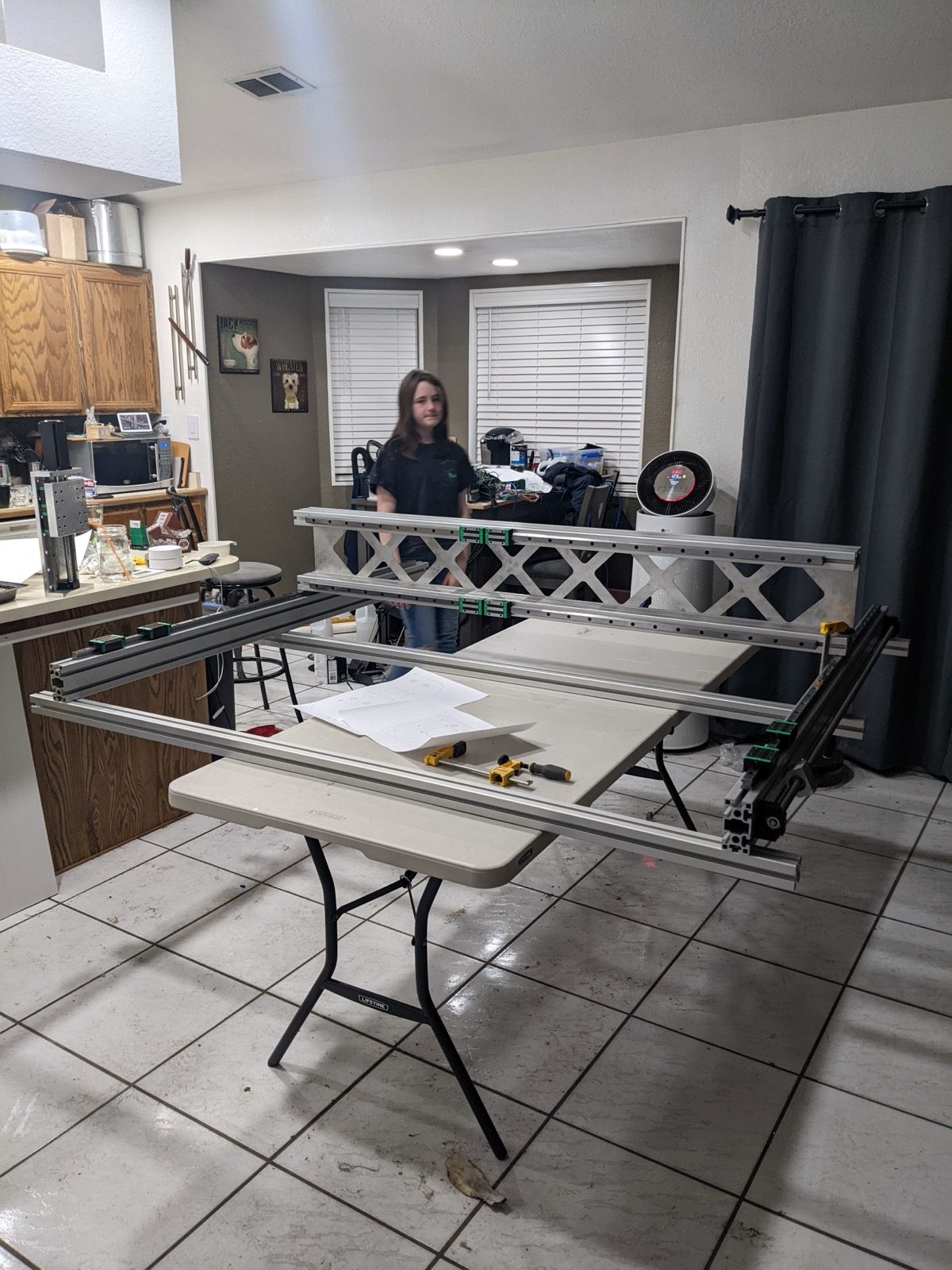

Overall build Gantry and ball screw Controller cabinet internals T-slot bed and workholding Early CNC router plate and bearing assembly Stepper drivers, power supplies, and control electronics laid out for assembly CNC router control electronics arranged and wired on the workbench Linear rails and aluminum extrusion prepared for the CNC router frame CNC router gantry components assembled on a temporary work surface Linear rails aligned along the aluminum extrusion frame CNC router gantry and frame assembled during the build Chris inspecting the assembled CNC router gantry
4×4 TravelT-slot AluminumDual Y Ball ScrewsVFD SpindleCentroid Acorn
Overview
My role
CAD design, machine assembly, control-cabinet layout, and wiring.
Challenge
Build a rigid 4×4 router from available parts with accessible, understandable controls.
Result
A working ballscrew-driven CNC router for wood, plastics, and aluminum.

The frame uses T-slot extrusions (8020-style) fastened into a rigid box with bracing where it matters. Motion is via dual Y-axis ball screws to keep the gantry square, with linear rails on all axes. A VFD spindle handles plywood, plastics, and aluminum without drama. The control cabinet is built around a Centroid Acorn with StepperOnline steppers/drivers—shielded cabling, labeled grounds, ferrules, the works.

At a Glance
Work Area
~49" × 49" (4×4)
Structure
T-slot extruded aluminum (fastened, braced)
Motion
Linear rails; dual Y ball screws, single X and Z ball screws
Spindle
VFD spindle with manual & M-code control
Controller
Centroid Acorn + StepperOnline steppers/drivers
Bed
T-slot aluminum table; easy workholding
Materials
Plywood, hardwood, plastics, aluminum
Built From
Off-the-shelf parts (eBay & suppliers), self-designed
My Take

I built this router table because importing a CNC from China wasn't worth the cost or the gamble. I wanted a rigid, reliable machine that could handle wood, plastics, and aluminum without compromise. Designing and wiring it from the ground up forced me to understand every signal, every ground, and every quirk of the system. It's big—too big, honestly—but it runs smooth and does exactly what it was built to do.

What I'd Do Next
  • Add a vacuum deck or pod system for thin sheet and fast swaps.
  • Quiet enclosure + integrated chip/dust management for aluminum.
  • Tool length probe and homing plate hard-mounted with strain relief.
  • Panel PC + pendant for jog, probe, and feed override at the gantry.
Highlights
Serviceable by Design
  • Open controller cabinet with labeled conductors & grounds.
  • Shielded cabling, ferrules, and clean strain reliefs.
  • All rails, screws, and couplers are easy to access.
Stiff Where It Matters
  • Dual Y ball screws keep the gantry honest.
  • Extrusion bracing and short Z stack fight chatter.
  • VFD spindle stays happy in plywood or aluminum.
Thinking about a build?

Let's design a CNC that fits your work—no mystery boxes.

I can help spec the motion, spindle, and control stack, then design for stiffness and serviceability. You get a machine you can maintain, not just operate.
